Viewing DICOM studies with Ambra for Box

End User , Ambra , Article , New , Instruction , Integration

What is the Ambra for Box integration?

Ambra Health is a medical data and image management cloud software company that offers a best-of-breed web-based DICOM viewer. Accessible through any web browser, the Ambra DICOM ProViewer enables access and collaboration on DICOM images from anywhere on any device.



With Ambra for Box, you can:

  • Immediately create, open and view DICOM studies, including legacy boxdicom studies.

  • Collaborate on imaging studies by annotating, measuring, comparing images, and more.

  • Take advantage of simple-to-use viewing and 3-D manipulation tools.



Notes:

  • More information about the Ambra ProViewer is available at https://ambrahealth.com.
  • Your Box Admin must enable the Ambra for Box integration for Ambra actions to show up in your Box environment

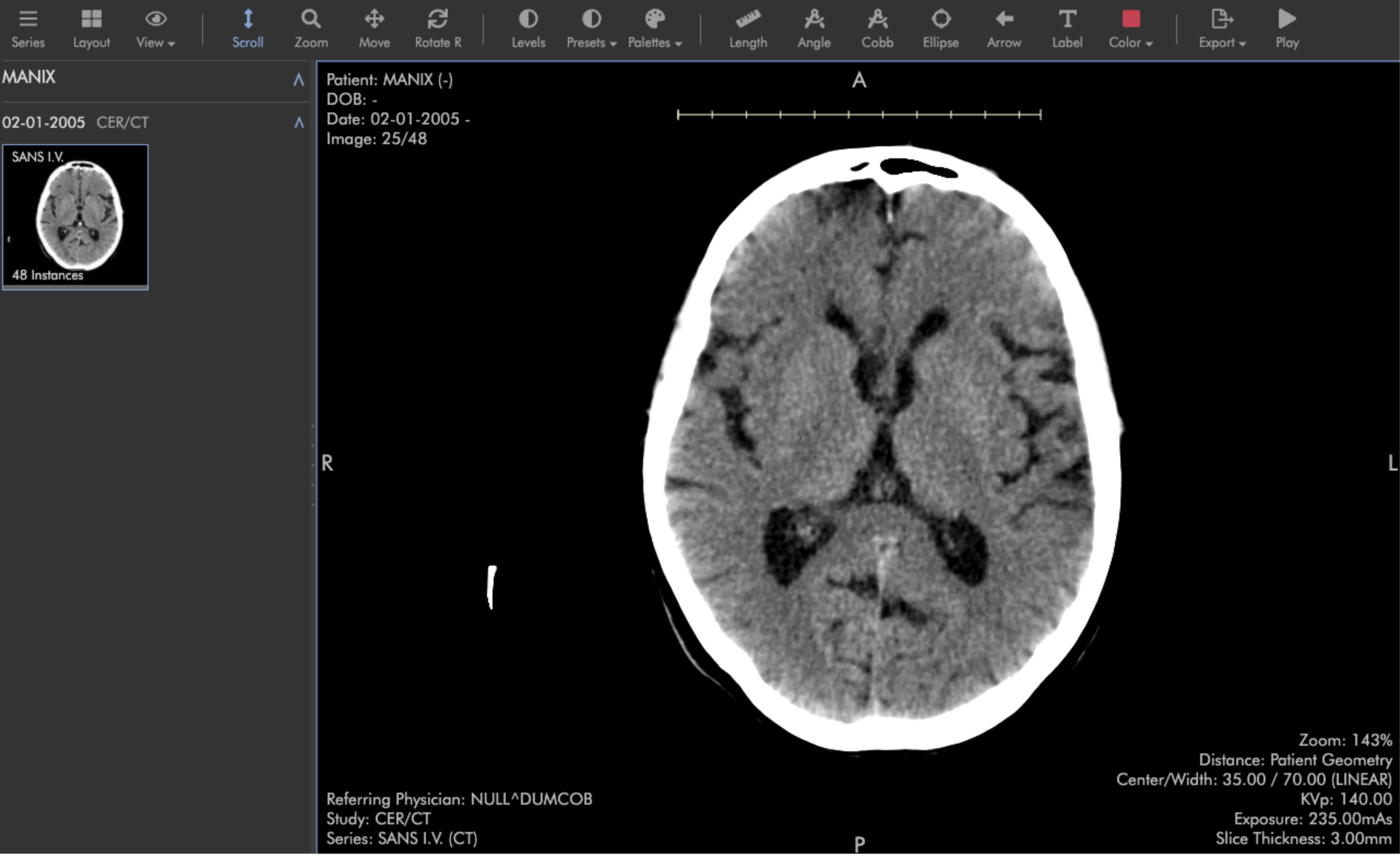

Opening an existing Box DICOM study

From the folder of an existing Box DICOM study, right-click on the *.boxdicom file and select Integrations > View DICOM files






This opens the study in Ambra ProViewer in a new browser tab.



Note:
The first time you open a DICOM study with Ambra ProViewer Box displays a consent window to grant access to the study files. This access grant is limited to the study and the underlying DICOM files.

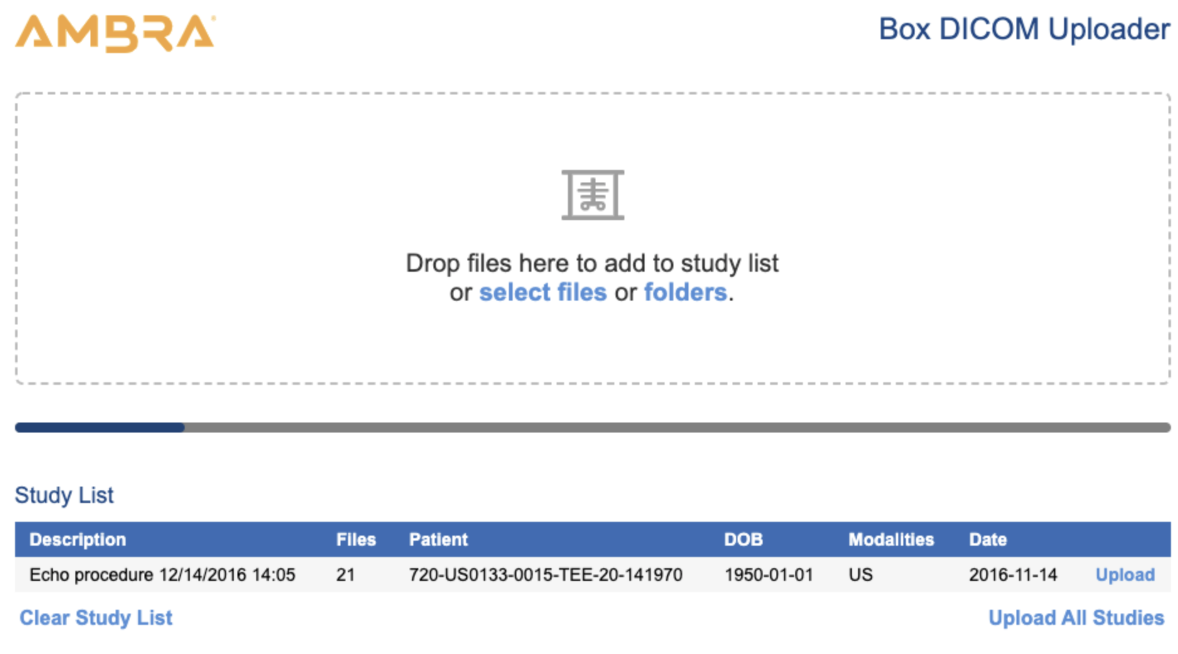

Uploading a new study

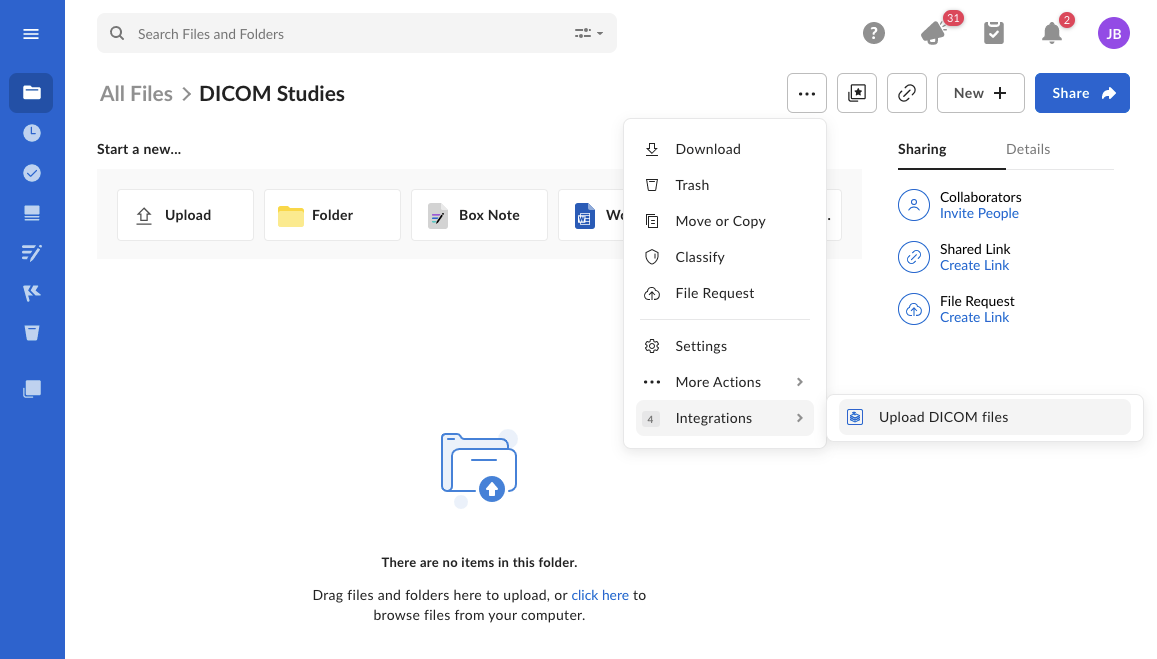

The DICOM uploader is available directly from any folder and can be accessed from the Integrations > Upload DICOM files prompt in the folder menu with one click.






To upload DICOM files into Box, simply drag and drop them into the uploader. Alternatively, you can also select files by browsing for them.








Opening an Ambra DICOM study

The flow is similar to opening a legacy Box DICOM study: in the study folder, locate the *.ambradicom file, right click on it to show the contextual menu and select Integrations > View DICOM files






Known Limitation

  • Box Drive does not support DICOM files with names that are exactly eight uppercase hexadecimal digits (0,1,2,3,4,5,6,7,8,9,A,B,C,D,E, or F) with no extension.  For example, Box Drive does not support file names "1234AD38" or "ABE32BD0".
